Discussion Starter · #1 ·
how to remove your passenger air bag
DISCONNECT YOU BATTERY FOR 15-20 MINSBEFORE WORKING WITH THE AIRBAG SYSTEM

First remove your stereo http://www.noteownersclub.co.uk/forum/how-to-remove-your-stereo_topic1397.htmland your glove box http://www.noteownersclub.co.uk/forum/how-to-change-your-cabin-filter_topic1395.html

You then need to remove both pillar trims by removing the door rubber away from the trims these are then held by 2 clips (pop the trim off with a trim removal tool)

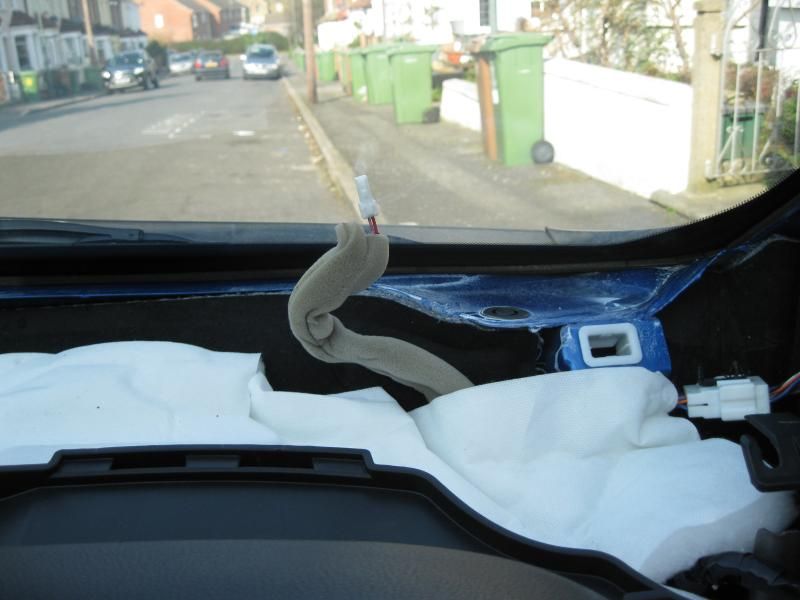

Next job it to remove the front dash trim it just clipped in place start at one end and work across the dash, lift the trim at the front and pull towards yourself (the demist vents/pipe workare attached to the trim) If you have climate dont forget to disconnect the sunload sensor

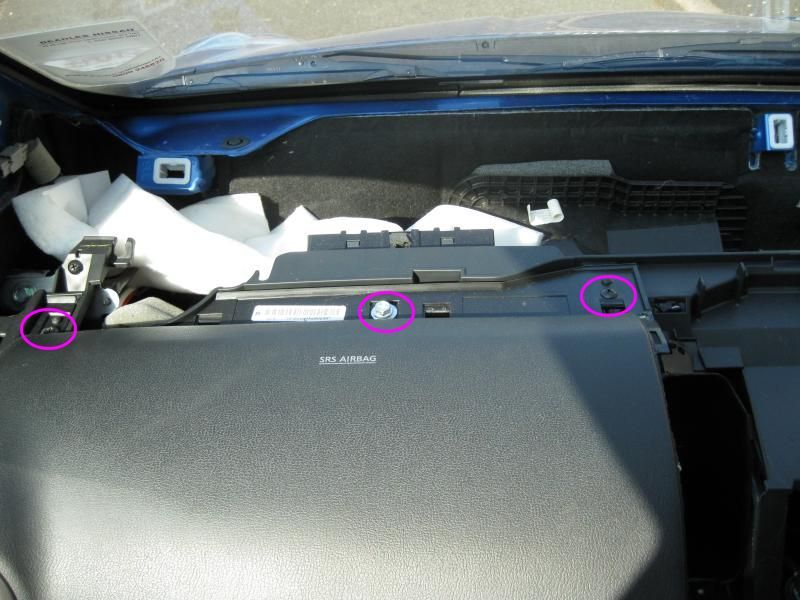

You can now remove the 2 screws and 10mm bolt at the top



And the 13mm bolt at the bottom



There are 2 clips and 3 locating tabs along the bottom carefully lift the airbag an/or trim on the sides and back with a trim tool as not to damage anything

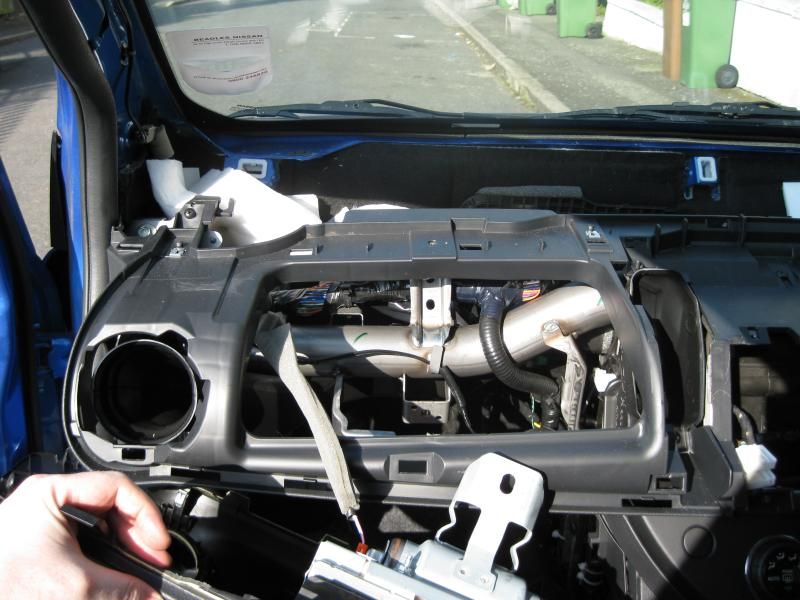

you can now remove the air vent (if thats what you want todo)








Edited by: flash22
